Rigging Training Workshop: Load Weight Estimation

Estimating a load's approximate weight is always an important part of any rigger's checklist and must be done before choosing the rigging system.

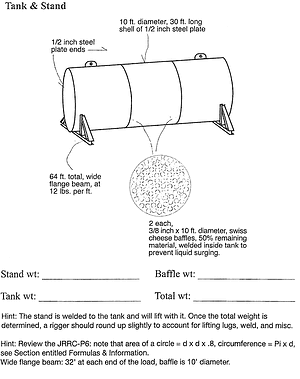

Have some fun and estimate the weight of the storage tank and its attached field stand below. To help you in your calculations we have provided Panel 6 of ITI Bookstore's Journeyman Rigger's Reference Card, which details weights of various materials and quick estimation formulas. Answers can be found below.



Journeyman Rigger's Reference Card - Panel 6

journeyman rigger's reference card

Happy trails to all my crane and rigging friends,
Mike Parnell
ITI-Field Services

P.S.  This article was originally published in The Professional Rigger Newsletter - Find CG by Test Lift.



Answers:

rigging workshop answers

Rigging Training Workshop - Find CG by Test Lift
Rigging Training Workshop - Load Weight Estimation (Half Circle)
