Rigging Training Workshop: Off-set CG, Sling Length Estimate

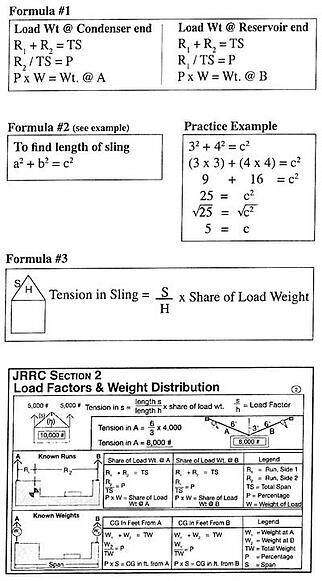

Once in a while we are faced with a rigging challenge that requires us to go back to a² + b² = c² . To solve the following "tension" questions in this problem use the three formulas below. (Answers can be found below.)

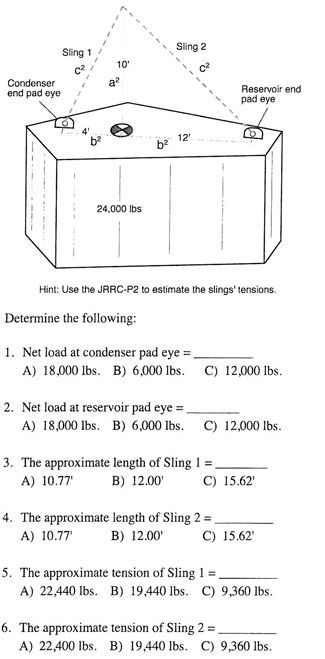

23 2 Off Set CG, Sling Length Estimate 2

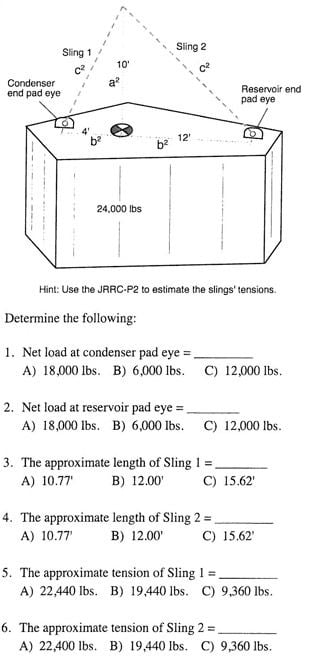

23 2 Off Set CG, Sling Length Estimate 1



Happy trails to all my crane and rigging friends,
Mike Parnell
ITI-Field Services

P.S.  This article was originally published in The Professional Rigger Newsletter - Off-set CG, Sling Length Estimate.



Answers:

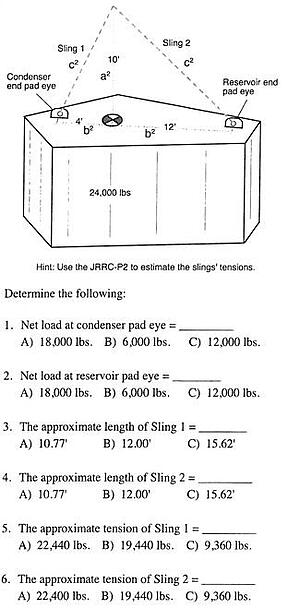

23 2 Off Set CG, Sling Length Estimate 3
