Custom Lifting Devices Can Help Solve Rigging Challenges

Often we discover that standard rigging will not provide sufficient load control and a custom system or device is required. Sometimes the designated lifting points on a load have been placed more for the convenience of the manufacturer rather than the field installation crew. Another challenge can arise due to the shape and center-of-gravity of the load, which results in a rigger trying to get too creative.

ITI strongly endorses the use of β€œqualified” below-the-hook lifting devices. You can find terrific guidance in developing a custom device from the ASME BTH-1 Design of Below-the-Hook Lifting Devices document. Also in ASME B30.20 Below-the-Hook Lifting Devices, we have access to informative care, use and inspection criteria for lifting devices. (Both documents are available at www.asme.org or the ITI Bookstore).

The following are just a small offering of ideas that can solve some load handling problems. The items pictured do not imply an endorsement of a given manufacturer, however, the name has been provided as a help to the reader. Numerous lifting device manufacturers exist in the U.S. and around the world. You may find that a custom device already exists though not shown on the manufacturer’s website or in their catalog. Contact a number of lifting device manufacturers to see if they have already designed a special lifter for your type application. You may be surprised at what is available. An excellent resource is the Member Directory at www.awrf.org.




Clamps for Beams

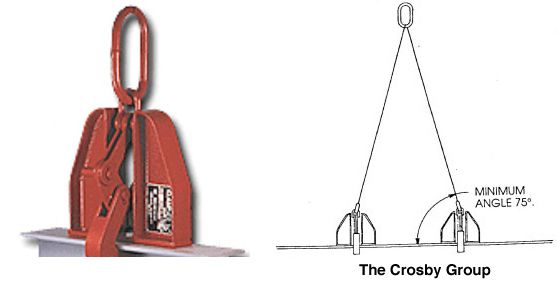

clamps for beams

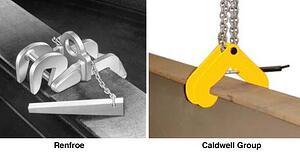

clamps 4 beams 2




Adjustable Lifting Frame

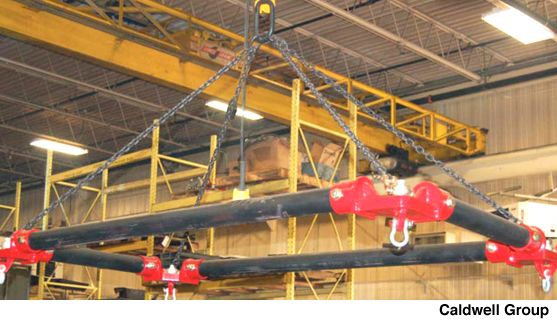

caldwell lifting frame

Product Features:

  • New knock-down design is easily transported
  • 6 or 9 ton capacity
  • Spreads up to 12' x 12'
  • Four point spreader beam provides added stability
  • Chain top rigging and hoist rings
  • Lower lifting shackles standard
  • Complies with ASME standards

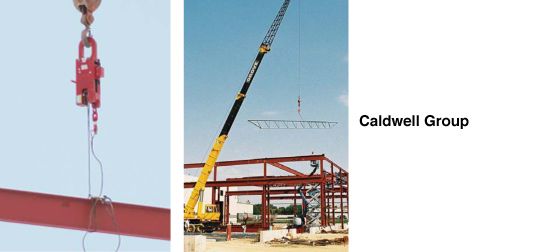

Rig Release

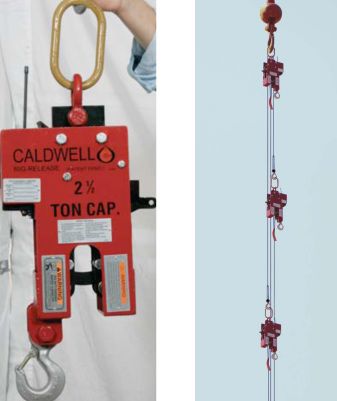

rig release caldwell

  • Lift Arm only moves when the load line is slack
  • Manual pull rope or radio remote
  • Design factor is five
  • Even works for Christmas treeing

rig release

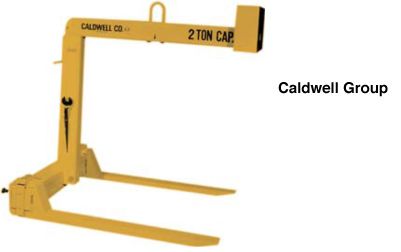

Pallet Fork for Crane Loads

pallet fork

  • Adjustable bail and forks
  • 1-20 ton capacity






Adjustable Spreader Bar

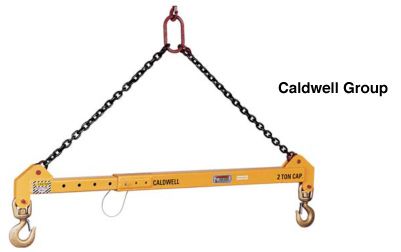

spreader bar caldwell



  • Spread 4-20 feet
  • 2-15 Ton capacity






Spreader

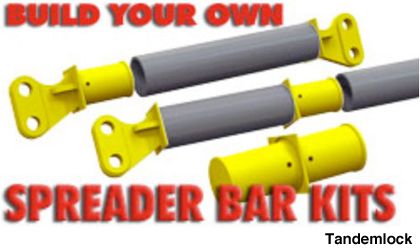

spreaderkits

  • Tandemlock ends, your pipe
  • 14 Tons and above




Counter Balance Spreader Bar

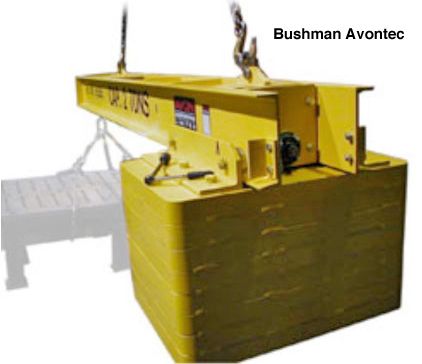

bushman avontec




Tilt-Up Rigging

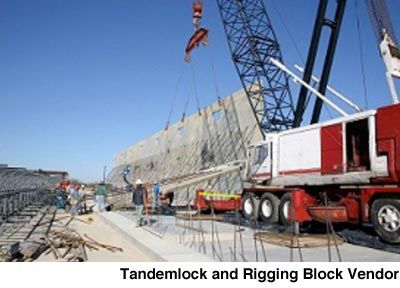

tilt up rigging

tilt-up rigging






Happy trails to my crane and rigging friends.

Mike Parnell
ITI – Field Services
